7 AXIS CNC GEAR HOBBING, CIMA - CE 260.

Get a Price/Quote

Product Details:

Product Type CNC GEAR HOBBING
General Use GEAR manufacturing
Material Metal,
Type Vertical, Horizontal, CNC Router,
Weight (kg) 12000 Kilograms (kg)
Computerized Yes,
Automatic Yes,
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

7 AXIS CNC GEAR HOBBING, CIMA - CE 260. Price And Quantity

Minimum Order Quantity 1 Piece

7 AXIS CNC GEAR HOBBING, CIMA - CE 260. Product Specifications

Weight (kg) 12000 Kilograms (kg)
General Use GEAR manufacturing
Color Green
Rigidity High
Automatic Yes
Feature High Precision, Vacuum Cleaning System, Low Energy Consumption, High Speed
Computerized Yes
Product Type CNC GEAR HOBBING
Power Source Electric
Material Metal
Type Vertical, Horizontal, CNC Router
PLC Control Yes

7 AXIS CNC GEAR HOBBING, CIMA - CE 260. Trade Information

Supply Ability 1 Piece Per Week
Delivery Time 1 Days
Main Export Market(s) Australia, Middle East, Western Europe, Africa, Asia, Eastern Europe,
Main Domestic Market Central India,

Product Description

CNC GEAR HOBBING.

Make : CIMA.
Model : CE 260
7 axis.
ALL MOTORS ARE SIEMENS.
CNC control : NUM 760
Max workpiece dia : 300 mm.
Max. hobbing module : 8.
Minimum number of teeth : 4
Max head adjustment : +- 45°
Tailstock travel : 250 mm.
Hob speed : 100-700 rpm.
Max. Worktable speed : 80 rpm.
Min distance between hob and worktable : 20 mm.
Max distance between table and work gear hobbing center : 290 mm.
Min distance between hobbing and work table axes : 125 mm.
Max distance between axes hobbing and work table : 385 mm.
Max hobbing vertical travel : 260 mm.
max. hobbing diameter : 140 mm.
max. hobbing length : 240 mm.
max. shifting travel : 200 mm
Work table dia : 260 mm.
Table hole : 80 mm.
Division wheel dia : 380 mm.
Approx weight of the machine : 12.000 Kg.

Other Products in 'CNC Gear Hobbing' category

Cnc Gear Hobbing, Wmw Modul - Zfwz 1250. Siemens 840. PLC Control : Yes Type : Horizontal, Vertical Computerized : Yes Feature : High Precision, High Speed Product Type : CNC GEAR HOBBING Color : Green Automatic : Yes General Use : gear manufacturing Weight (kg) : 23000 Kilograms (kg)

Send Inquiry

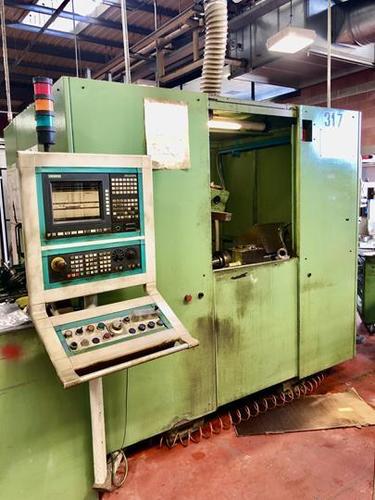

HORIZONTAL CNC GEAR HOBBING, C.L.C. (Italy) - 150 PLC Control : Yes Type : Horizontal, CNC Router Computerized : No Feature : Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System Product Type : 5 AXIS CNC GEAR HOBBING Color : Green Automatic : No General Use : GEAR HOBBING Weight (kg) : 8000 Kilograms (kg)
